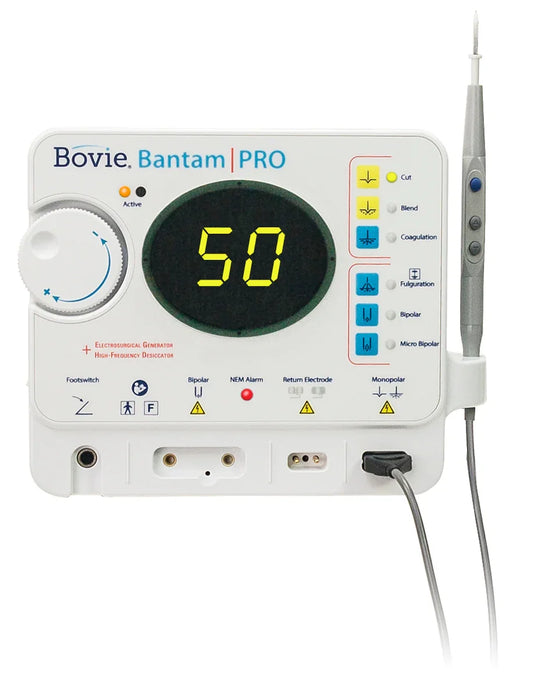

Bovie® Bantam | PRO™ 50W Electrosurgical Generator | Aspen Surgical A952

Bovie® Bantam | PRO™ 50W Electrosurgical Generator | Aspen Surgical A952

The Bovie Bantam | PRO, A952 is a High Frequency Desiccator with cutting ability. You might call it a split personality. One half of the unit is a high frequency desiccator, an upgrade to our very popular Aaron 940. The other half is a Bovie Generator, giving you 50 watts of cutting power and coag capabilities plenty of power for most cutting procedure performed in the doctors office.

Video

Video

Specifications

• Technical Specifications

  MONOPOLAR	WATTS	VPEAK MAX VOLTAGE	CREST FACTOR (TYPICAL)	FREQUENCY (KHZ)
  Cut I	50	1600V	2.2 ± 20%	343kHz ± 10%
  Blend	50	2100V	3.5 ± 20%	368 kHz ± 10%
  Coagulation	50	2900V	5.2 ± 20%	340 kHz ± 20%
  Spray Coagulation	40	6300V	9.5 ± 20%	410 kHz ± 10%

  MONOPOLAR	WATTS	VPEAK MAX VOLTAGE	CREST FACTOR (TYPICAL)	FREQUENCY (KHZ)
  Bipolar	40	950V	5.5 ± 20%	368kHz ± 10%
  Micro Bipolar	40	300V	2.6 ± 20%	338 kHz ± 10%


  Technical Specifications:

  • Lifespan: Reusable
  • Sterilization Status: Non-sterile


  Electrical Specifications:

  • Line Frequency: 50-60 Hz
  • Output Frequency: 304-451 kHz
  • Line Voltage: 100-240 VAC
  • Cooling System: Passive Cooling
  • Technology: Isolated RF Output
  • Monopolar HP Ports: 1 Port(s)
  • Certifications: CE 0413
  • Range Trip Point: (10C° to 40°C)


  Safety Specifications:

  • Latex-Free: Yes



  Include

  Included Items

  SKU	Name	Default Quantity
  A952	Electrosurgical Generator + High Frequency Desiccator	1
  A902	Autoclavable 3 Button Pencil	1
  A910	Handpiece Sheath	2
  A910ST	Handpiece Sheath With Card	2
  ES01	Blade Standard	3
  ES02	Needle Standard	1
  ES20	Ball Electrode 3/16"	1
  A804	Electrode Sharp Tip Non-Sterile	5
  A806	Electrode Blunt Angled Blade Non-Sterile	5
  A806DE



  Resource

  Resources

  Catalogs:

  • Bovie® Product Catalog
  • Bovie High Frequency Desiccator Brochure

  IFUs:

  • Bovie® Bantam Pro A952 User Guide (English)
  • Bovie® Bantam Pro A952 User Guide (French)
  • Bovie® Bantam Pro A952 User Guide (Bulgarian)
  • Bovie® Bantam Pro A952 User Guide (Portuguese)
  • Bovie® Bantam Pro A952 User Guide (Italian)
  • Bovie® Bantam Pro A952 User Guide (German)
  • Bovie® Bantam Pro A952 User Guide (Spanish)
