Bovie® DERM 942 High Frequency Desiccator | Aspen Surgical

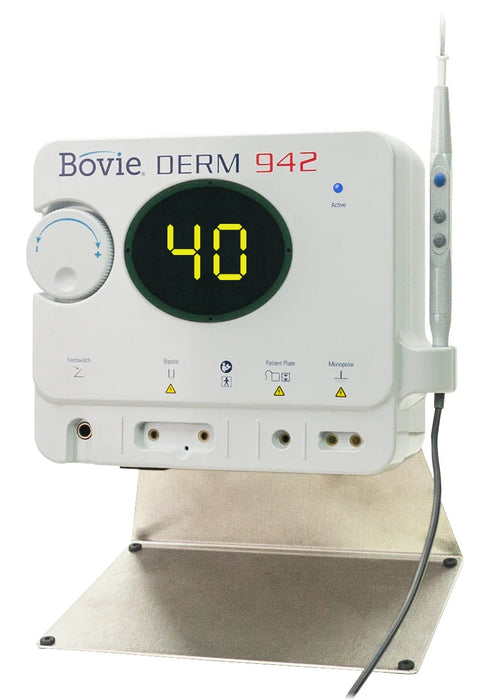

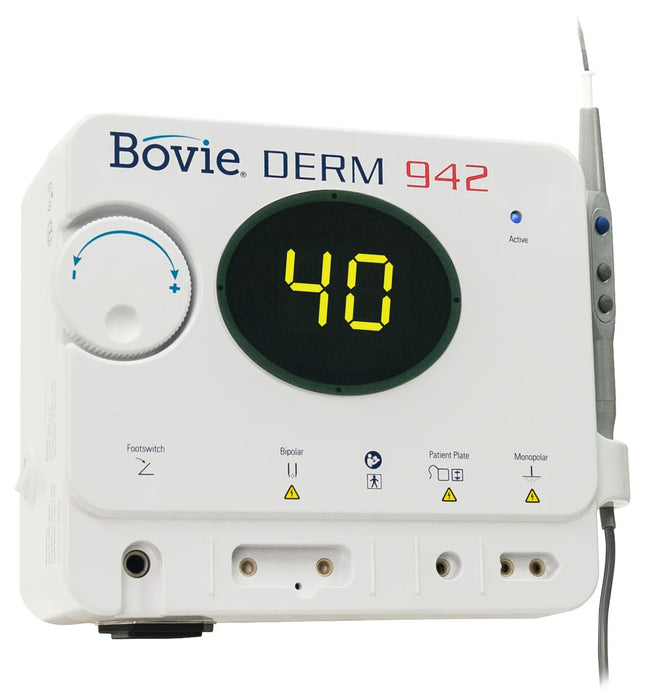

Bovie^® DERM 942

Designed for years of trouble-free use, the Bovie DERM 942 is designed and engineered to be the most reliable and durable desiccator available today. The units life is prolonged by incorporating the latest in chip technology and reducing the number of internal parts, thereby generating less internal heat. Post-procedure and long-term cleanup are simplified by its non-absorbing, non-staining, high impact plastic case.

Specifications

• Technical Specifications

  MONOPOLAR	WATTS	VPEAK MAX VOLTAGE	CREST TYPE (TYPICAL)	FREQUENCY (KHZ)
  Spray Coagulation	40	6300V	9.5 ± 20%	410 kHz ± 82.0 kHz

  BIPOLAR	WATTS	VPEAK MAX VOLTAGE	CREST TYPE (TYPICAL)	FREQUENCY (KHZ)
  Standard Bipolar	40	950V	5.5 ± 20%	368 kHz ± 36.8 kHz


  Technical Specifications:

  • Cord: 110 VAC Hospital-grade power cord
  • Lifespan: Reusable
  • Sterilization Status: Non-sterile


  Dimensions:

  • Width: 8.98 in (228 mm)
  • Height: 7.40 in (188 mm)
  • Depth: 4.13 in (105 mm)
  • Weight: < 5 lbs (<2.26 kg)


  Electrical Specifications:

  • Monopolar: Spray Coagulation
  • Monopolar Watts: 40 watts
  • Monopolar Vpeak Max Voltage: 6300 V
  • Monopolar Crest Type (Typical): 9.5 ± 20%
  • Monopolar Frequency (KHZ): 410 ± 82 kHz
  • Bipolar: Standard Bipolar
  • Bipolar Watts: 40 watts
  • Bipolar Vpeak Max Voltage: 950 V
  • Bipolar Crest Type (Typical): 5.5 ± 20%
  • Bipolar Frequency (KHZ): 368 ± 36.8 kHz
  • Line Frequency: 50-60 Hz
  • Output Frequency: 328-492 kHz
  • Line Voltage: 100-240 VAC
  • Output Power: Bipolar: 40 watts
  • Output Power: Fulguration: 40 watts
  • Cooling System: Passive Cooling
  • Technology: Isolated RF Output
  • Audible/Visible Output Meter: Yes
  • Pre-set Feature: No
  • Monopolar HP Ports: 1 Port(s)
  • Connector Ports/Power Switch: White


  Safety Specifications:

  • Latex-Free: Yes



  Included

  Included Items

  SKU	Name	Default Quantity
  A942	High Frequency Desiccator Monopolar/ Bipolar	1
  A902	Autoclavable 3 Button Pencil	1
  A804	Electrode Sharp Tip Non-Sterile	5
  A805	Electrode Sharp Tip Sterile	2
  A806	Electrode Blunt Angled Blade Non-Sterile	5
  A807	Electrode Blunt Angled Blade Sterile	2
  A806DE	Derm-Elite Dermal Tip Electrode Non-Sterile	2
  A807DE	Derm-Elite Dermal Tip Electrode Sterile	2
  A910	Handpiece Sheath	2
  A837
