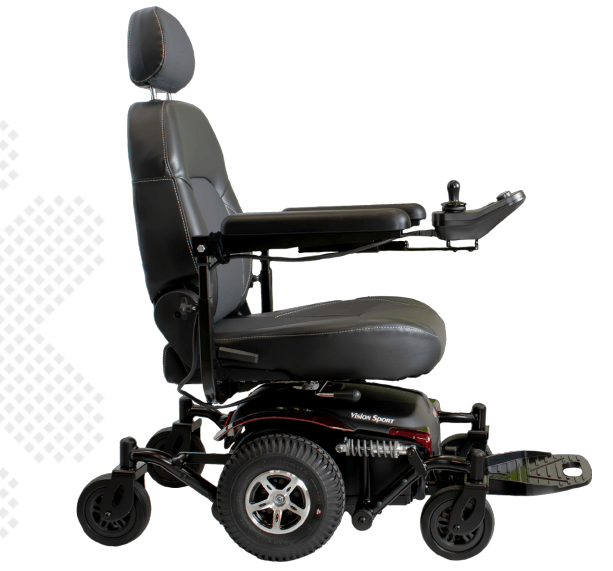

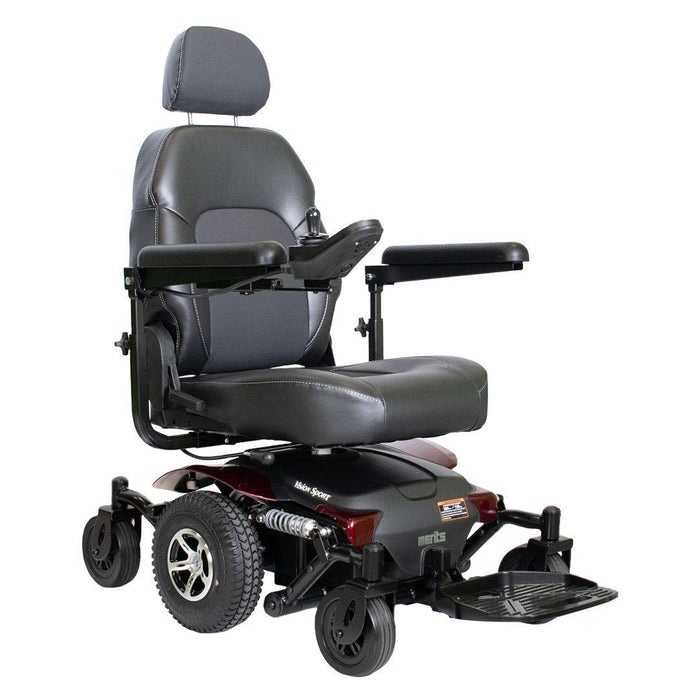

Merits Power Wheelchair VISION SPORT P326E0M-ARMUB
Merits Power Wheelchair VISION SPORT P326E0M-ARMUB MWD Powerbase
K0822 / K0823
VISION SPORT P326E0M-ARMUB
MWD, 16",18",20", CAPTAIN or PAN SEAT, RED, 300 LBS CAP, 10"
FOAM-FILLED DRIVE TIRES, LiNX, INCLUDES U1 BATTS
VISION SPORT P326E0M-SBMUB
MWD, 16",18",20", CAPTAIN or PAN SEAT, BLUE, 300 LBS CAP, 10"
FOAM-FILLED DRIVE TIRES, LiNX, INCLUDES U1 BATTS
The Vision Sport electric wheelchair offers exceptional comfort for daily outings. This mid-wheel power wheelchair features full suspension for enhanced stability, durability, and reliability, ensuring a smoother ride. With a turning radius of 20", you can navigate turns effortlessly. It comes equipped with solid 6" tires in the front and rear and 10" tires in the middle, so you won't have to worry about flat tires while on the move.
Features
True mid-wheel: 20” turning Radius
• Robust independent suspension can absorb up to 250 lbs. on
the footplate without tipping.
• Premium, semi-reclining ergonomic seat, up to 135°
• 10” Solid drive tires for superior traction
• Dynamic LiNX 40A controller for convenient Bluetooth
programming and diagnostics
• 16” - 20” customizeable seat depth
Specifications
Product# P326
Weight Capacity 300 lbs.
Drivetrain MWD
Seat Type Captain or Pan
Seat Width 18” - 20”
Seat Depth 16” - 20”
Backrest Height 18” - 20”
Seat-to-Floor Height 17” - 21”
Overall Length 34”
Overall Width 24”
Overall Height 48.5”
Turning Radius 20.6”
Ground Clearance 2”
Total Weight 184 lbs.
Wt of Heaviest Pc. 90 lbs.
Max Speed 5 mph
Range Per Charge up to 18 mi.
Battery Size (2 required) 33Ah, U1 AGM
Motor DC24V / 160W
Controller Dynamic LiNX 40A
Charger 4A off-board
Gradient 6°
Front Wheels 6” - solid
Drive Wheels 10” - solid
Rear Wheels 6” - solid
HCPCSCode K0822 / K0823
Options
Unoccupied transit tie down kit
• Cup holder
• USB charger
• Oxygen tank holder
• Walker holder
16” - 20” seat width option
• Swing-away joystick
• Elevating leg rests (K0195)
• Foldable rear basket
• Cane & crutch holder
